Linear axes
Linear axes for high speeds: universal application as a single axis or in combination with further axes from our system range for complex multi-axis systems. Nadella’s building block system for linear axes provides all linear motion technology components up to the motor interface: Systems and telescopic axes with roller guides or recirculating ball guides, with belt drive, ballscrew drive or rack and pinion drive, suitable for direct, cross or portal links or as a single axis system. You can realise your design quickly and precisely using these universal motion and positioning axes.
Characteristics:
- belt drive or ball screw drive
- for high speeds and high precision requirements
- high travel speeds up to 10 m/s
- overall length up to 12 m
- loads up to 250 kg
- broad product range for all applications
- all options for the simple assembly of multi-axis systems
Belt driven

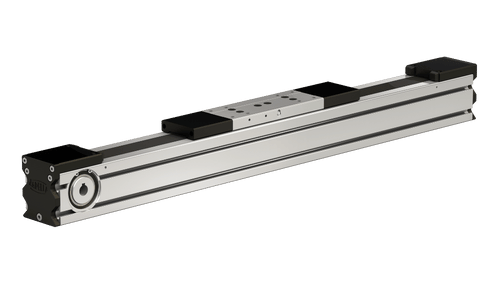

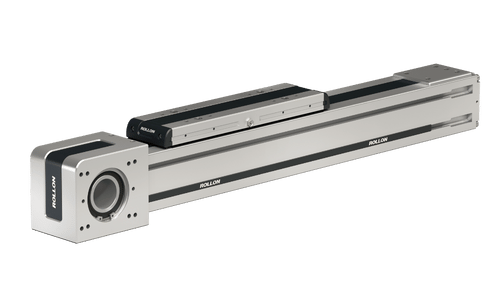

Belt Driven Linear Axes
- closed with roller or recirculating balls guiding.
- with single, double or orthogonal recirculating balls guiding.
- with omega drive for vertical applications.
Telescopic
Telescopic Linear Axes
- Belt driven telescopic axes with single or double beam.
- Rack and pinion driven telescopic axes with double beam.
Ballscrew Driven

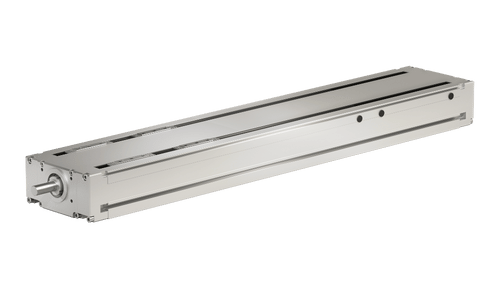

Ballscrew Driven Linear Axes
- closed, with recirculating balls guiding.
- with spindle protection, double recirculation balls guiding.
- with double recirculation balls guiding.
Rack and Pinion Driven

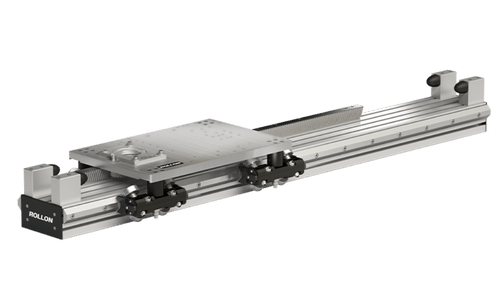

Rack and Pinion Driven Linear Axes
- Linear axes driven by rack and pinion for heavy duty applications.
