Chiavette Unificate Clevises DIN 71752

With our Chiavette Unificate „G“ series clevises we are able to offer a practical solution for applications that need connecting elements for the static transmission of a force (linear push and pull).

GS Series

GS Series

GR Series

GR Series

GA Series

GA Series

AG Series

AG Series

Chiavette Pins

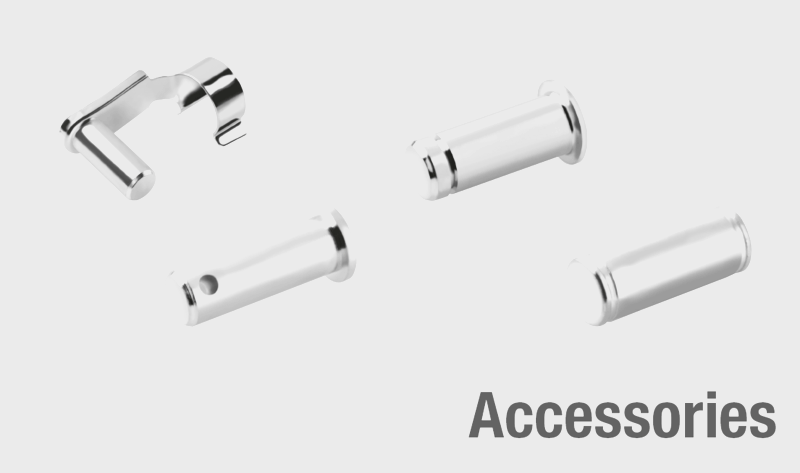

Accessories

All our products from this series are made of 11SMnPb30 steel (1.0718) or AISI303 (1.4305) stainless steel. The production according to DIN 71752 guarantees a competitive price level, a wide range available in stock and an easy use in combination with the components to which they shall be connected to.

Included in the basic configuration is a right-hand regular-pitch (DIN) or fine-pitch thread (ISO 8140) for adjustments that need more precision. For applications that require a wide range of adjustments a long version is included as well in the standard range.



Our forks are available in other configurations as well:

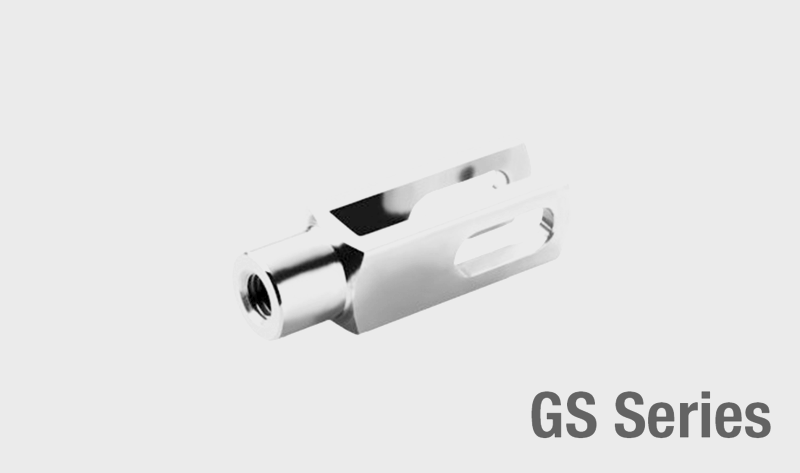

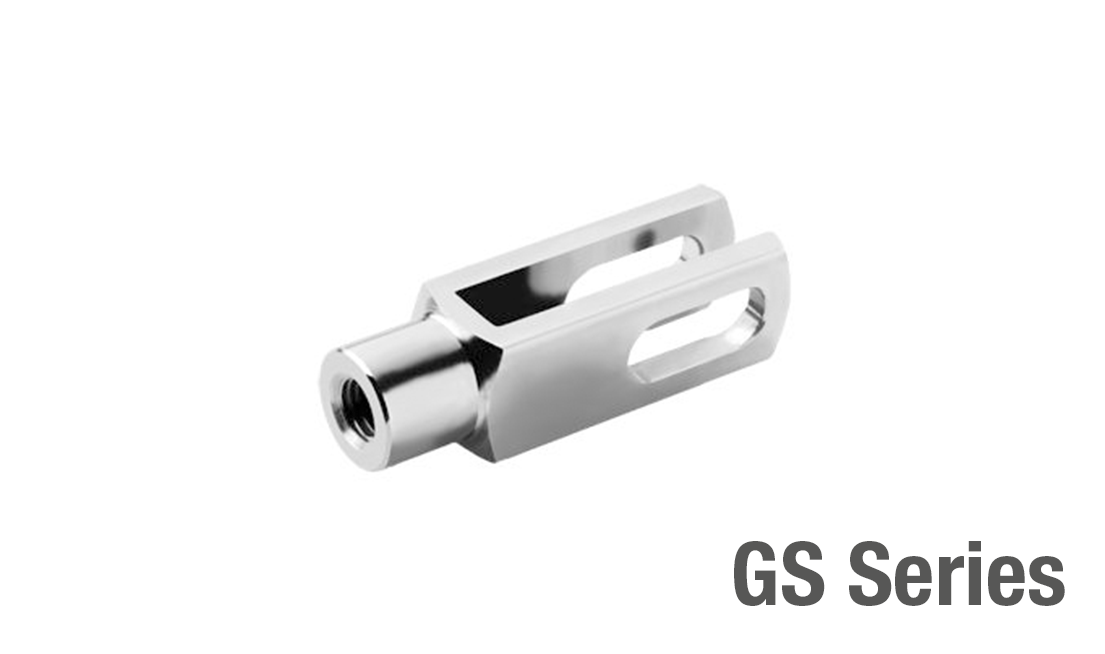

  • GS series. Version with elongated holes, useful in case adjustment in holes is required.

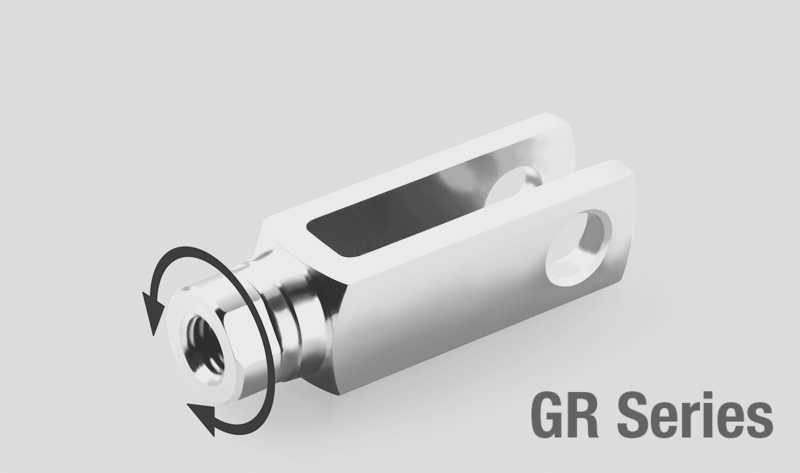

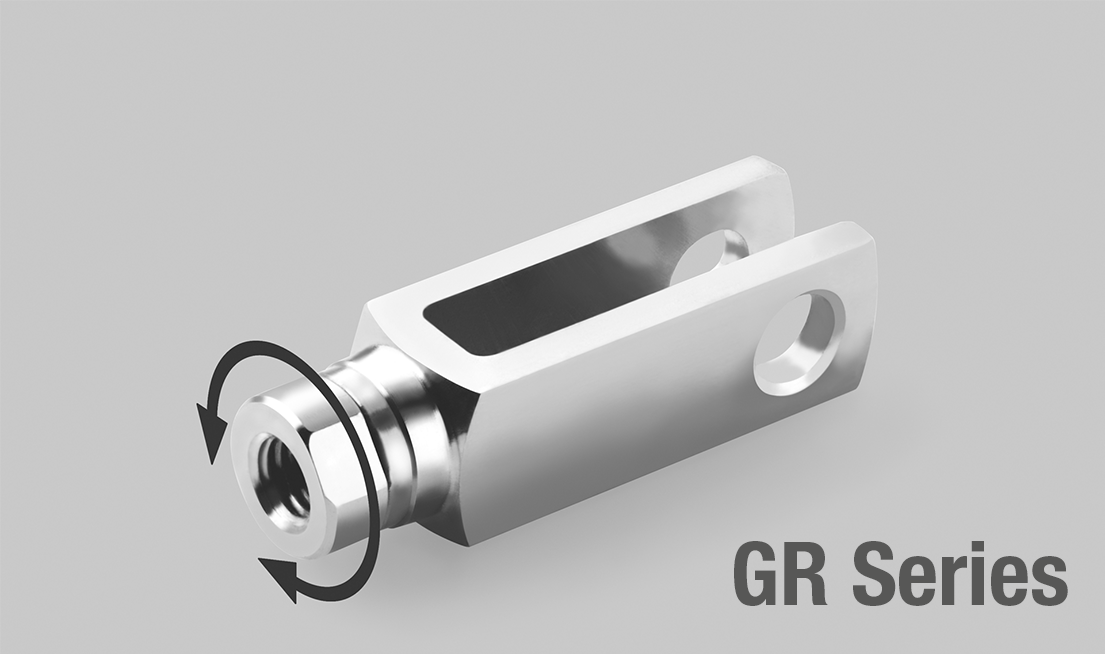

  • GR series. Innovative clevis connection, that allows free rotation on the axis.

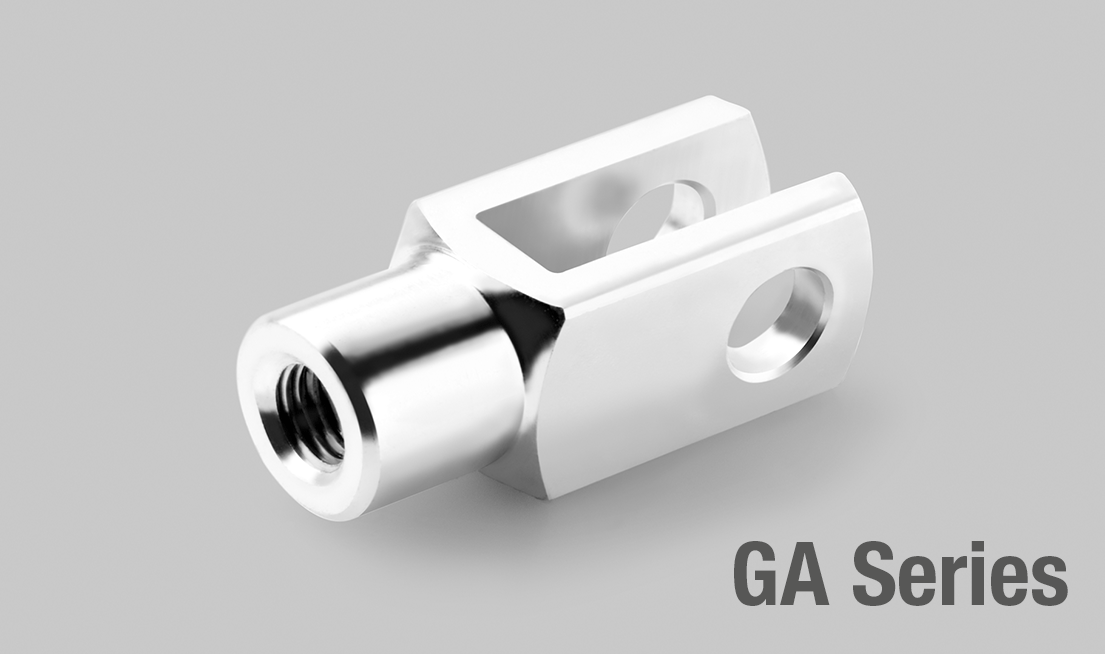

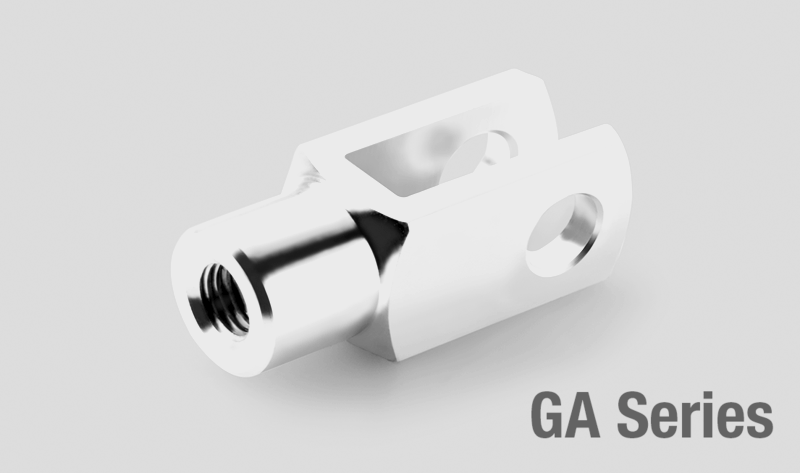

  • GA series. Made of aluminum and anodizated, a lighter solution than steel.

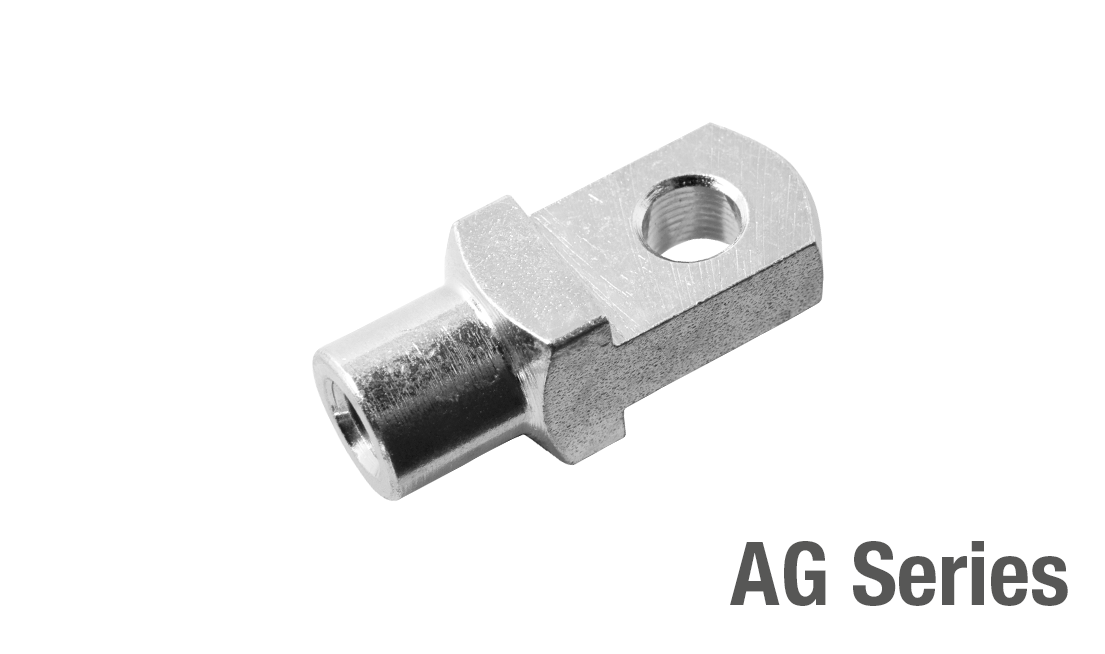

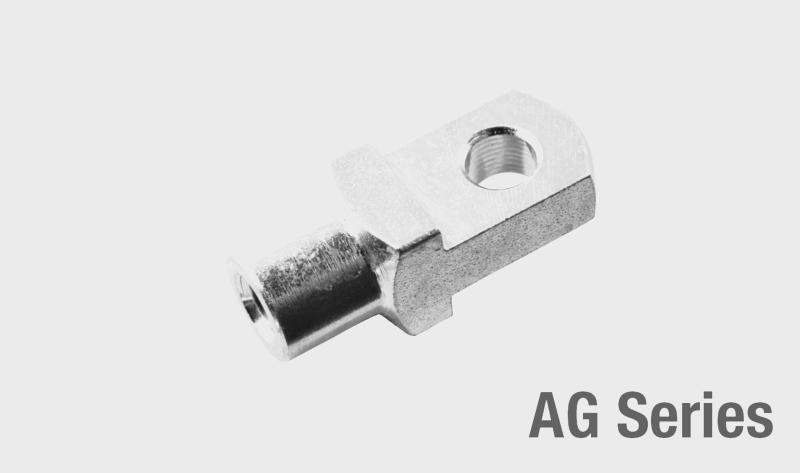

  • AG series. thanks to its geometry, this clevis can be used either as a stand-alone connecting element, or in combination with the standard forks, forming a sort of joint.

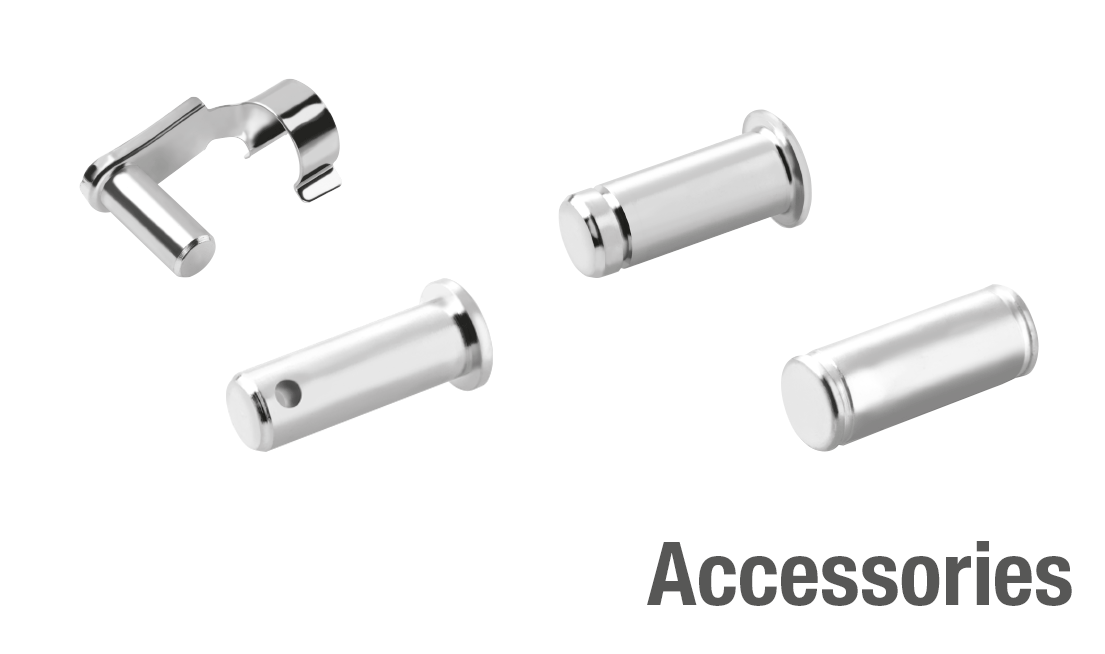

Each type of clevis can be equipped with a wide range of accessories (pins) to fasten the product to your systems.

If the standard product does not meet your needs, Chiavette Unificate is able to develop and supply special products according to customer drawings.  We are glad to advise you. Please visit our Chiavette Unificate website for more information and contact details.
